130LM/W Outside Flood Light Fixtures High Power Led Flood Lights 400W With Optional Lens
According to the lighting characteristics of power plants, shipyards, petrochemicals, steel plants, petroleum and other industries, the company's latest integrated EBF209 (LQ) LED floodlights are widely used in shipyards, petrochemicals, steel plants, power plants, petroleum and other plants (fields) Do cast lighting.
| Rated voltage V | AC220V |
| Operating voltage range V | AC100-305V |
| Power(W) | 400W |
| Rated frequency Hz | 50Hz |
| Light source | LED solid-state cold light source |
| Color rendering Ra | >80 |
| Protection grade | IP67 |
| Anti-corrosion grade | WF2 |
| Power factor | >0.95 |
| Start-up time(min) | Instant |
| Restart time(min) | Instant |
| Shell material/thickness(mm) | 3 |
Performance characteristics:
The shell (radiator) is stretched and formed with aviation lightweight aluminum alloy profiles. The large heat sink design ensures sufficient heat dissipation surface area. At the same time, each heat sink conforms to the thermal flow dynamics design to meet the heat dissipation area while ensuring the heat conduction cross section, making the LED The heat generated can be timely and effectively exported to the surface of the housing (heat sink) to ensure the heat dissipation performance of the LED and the service life of the LED. At the same time, a heat conduction channel is designed for each LED.
The power supply is Taiwan MEAN WELL power supply recognized by international lighting experts with the best matching performance for LED lamps, no flicker, stable power supply performance, and a wide range of voltage applications up to AC100-305V.
The light source cavity and the power supply are completely isolated, so as to avoid mutual thermal interference, which greatly extends the service life of the light source and electrical appliances.
The optical grade lens is used to complete the secondary light distribution, with high light transmittance, the whole light effect is as high as 120lm/W, and the light distribution is uniform, making the light softer and effectively improving visual visibility.
Large ventilation diversion and dust removal holes are designed on the end covers at both ends of the shell to ensure good ventilation and convection with the air, and dust cannot accumulate for a long time, ensuring good heat dissipation performance of the lamp.
The seal is made of high and low temperature resistant silicone rubber material, and the shell protection grade is IP67, which is waterproof, dustproof and moisture-proof.
The mounting bracket is fixed with fastening bolts and gears, which can flexibly adjust the irradiation angle, adopts anti-dropping chain, and double protection to prevent the lamp from falling.
The light-emitting angle is 30 degrees, 60 degrees, and 90 degrees optional to meet the lighting needs of different places.
|
|

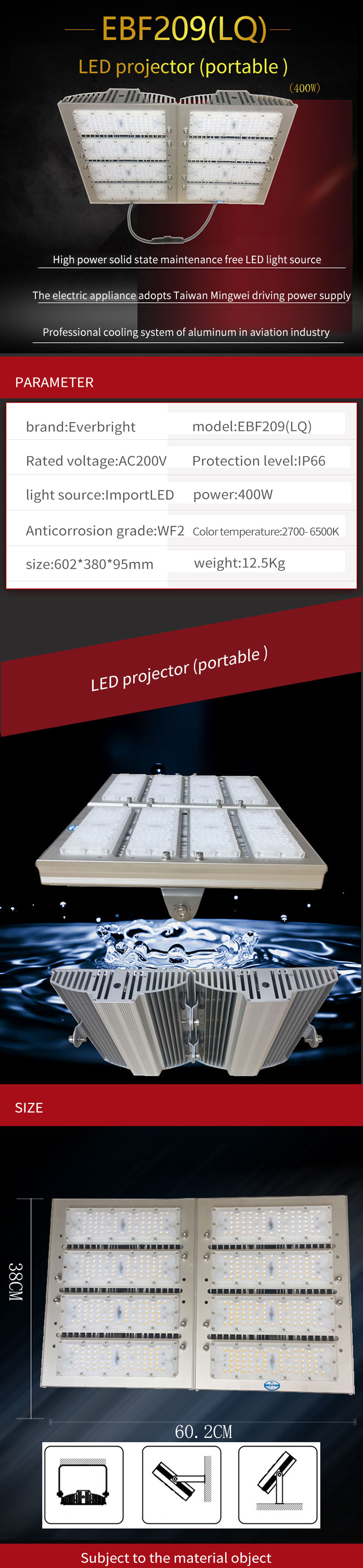

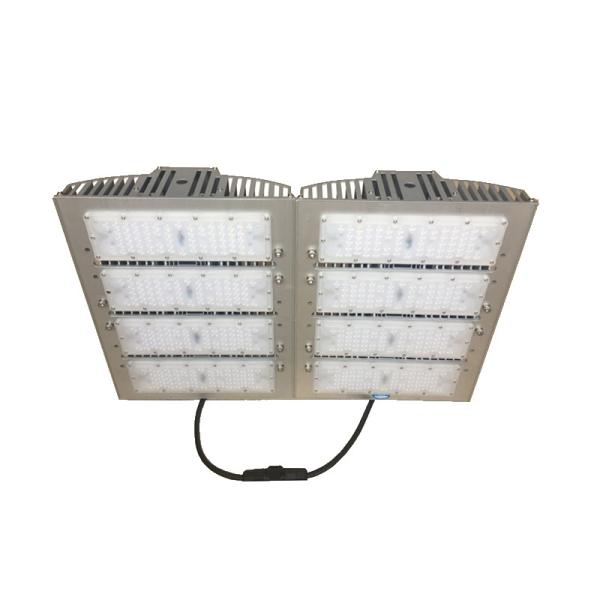

130LM/W Outside Flood Light Fixtures High Power Led Flood Lights 400W With Optional Lens Images
|
